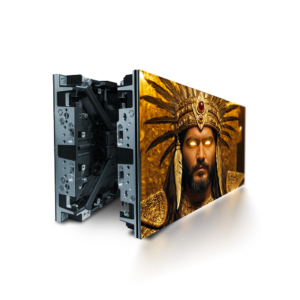

ENKI 0.9

COB nun auch endlich für unterwegs: ENKI 0.9 ist das erste Chip-on-Board Produkt im LANG-Portfolio, das für den Rental-Bereich konzipiert ist. Ein effizienter Betrieb, scharfe Bilder und ein robustes Design machen ENKI zu einem eindrucksvollen LED-Produkt. Der kleine Pixelpitch in Kombination mit der hohen Helligkeit ist da nur einer der vielen Vorteile, die die COB-Technologie mit sich bringt.

Key features

  • 0,9 mm Pixelpitch
  • 1.200 Nit
  • Chip-on-Board-Technologie
  • Rental Cabinet Design
  • CA50E (5Gbit) Receiving Card, NovaStar-Processing
  • 7.680 Hz Refresh Rate
  • Hohe Bildqualität dank moderner Driving Technologie
Model name ENKI
Pixel pitch 0.9375 mm
Brightness ≥ 1200 nit
Pixel density 640 x 360 px/cabinet; 1,137,778 px/m²
LED-type COB (Chip-on-Board), Flip Chip
Lifespan LED 100,000 hours
Viewing angle 160° horizontal; 160° vertical
Input frequency 50 to 60 Hz
Processing Novastar, CA50E (5G) Receiving Card
Bit depth 16 bit
Refreshrate 7680
Power consumption Maximum:
Average:
Input voltage 100 – 240 V / 50 – 60 Hz
Teperature operating 0 to 45 C°
Humidity operating 10 to 90 %
Cabinet dimensions 600 x 337 x 77 mm (WxHxD); (=0,20 m²)
Weight 7,2 kg/cabinet
Maintenance Front/Back maintenace
Protection IP30
Certification CE, RoHs, EMC class B, TÜV
Model name ENKI
