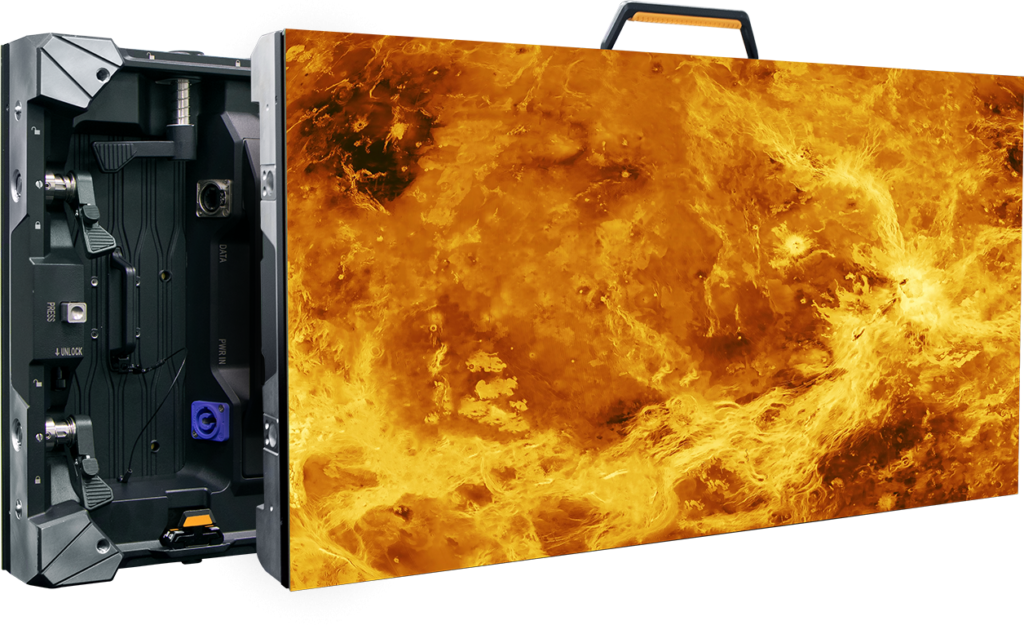

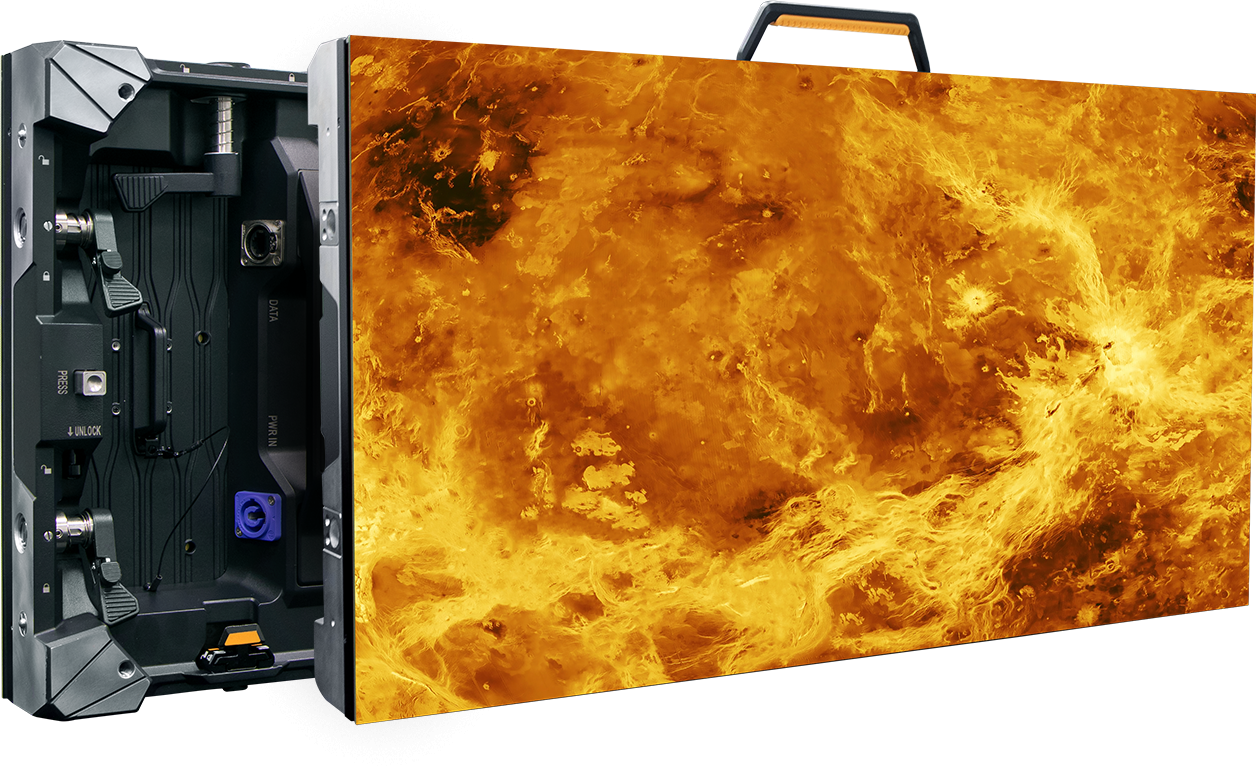

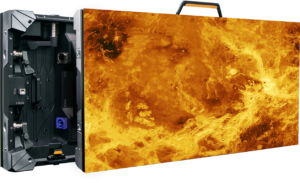

VENUS combines the latest innovations in ultra-high resolution LED technology with all the requirements for a robust and intuitive rental product. Despite a pixel pitch of just 1.2 mm, VENUS is extremely impact resistant thanks to IMD technology and also achieves a brightness that is much higher than that of conventional 1.2 mm products. The reason for this is the so-called Flip Chip technology, which guarantees a 100% light yield of the LED chip an thus an enormous efficiency. In addition, the brightness can be increased by Dynamic Calibration, one of many useful features of the intuitive Brompton Tessera software.
VENUS
Key features
- High brightness
- Enormous efficiency
- Brilliant image impression
- Robust in handling
- Intuitive processing
| Model designation | VENUS |
| Pixel pitch | 1,27 mm |
| Brightness | 1.500 nit |
| Peak brightness | 1.700 nit |
| Application area | Indoor |
| Pixel density | 480 x 270 px/cabinet; 129,600 px/m² |
| LED-type | IMD (Integrated Matrix Device); |
| CCT (Common Cathode Technology); | |
| Flip Chip | |
| Lifespan LED | 100,000 hours |
| Viewing angle | 160° horizontal; 160° vertical |
| Processing | Brompton Tessera |
| Power consumption | Maximum: 179 W/cabinet; 856 W/m² |
| Average: 60 W/cabinet; 285 W/m² | |
| Input voltage | 100 – 240 V / 50 – 60 Hz |
| Ambient temperature | -10 bis 45 °C |
| Operating humidity | 10 bis 90 % |
| Cabinet dimensions | 610 x 343 x 80 mm (B x H x T); (=0,21 m²; 27,6“) |
| Aspect ratio | 16:9 |
| Weight | 9.2 kg/cabinet; 43.98 kg/m² |
| Max. height (hanging/stacking) | 18 Cabinets / 18 Cabinets |
| Maintenance | Front/Rear Service |
| Faceted installation | -5° to 0°, in variable steps |
| Protection (Front/Back) | IP40/IP21 |
| Certification | CE, RoHS, EMC class A, FCC, TÜV |
