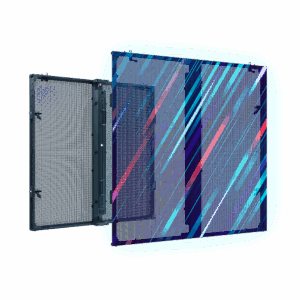

LIAM is the latest lightweight in the LANG portfolio – and the newest milestone in transparent LED. Weighing just 12 kg per cabinet, with a pixel pitch of 6.25 mm and a brightness of 4,200 nits, LIAM combines stunning visuals with effortless handling. Indoors or out. The Glue-On-Board surface together with the IP65 rating makes the 1 × 1 m cabinet resistant to wind and weather, while Active Matrix technology eliminates disruptive scan lines and enhances viewing comfort.
LIAM
Key features
- 6.25 mm pixel pitch
- 4,200 nit, HDR
- concave (-): 20° ~ convex (+): 20°
- GOB (Glue on Board)
- Novastar A10s Pro Receiving Card
- Physical transparency: 35% Visual transparency: 85%
| Model name | LIAM |
| Pixel pitch | 6.25 mm |
| Brightness | 4,200 nit, HDR |
| Pixel density | 160 x 160 px/Cabinet; 25,600 px/m² |
| LED-type | SMD with integrated driver, GOB (Glue on Board) |
| Lifespan LED | 100,000 hours |
| Viewing angle | 120° horizontal; 120° vertical |
| Input frequency | 100 – 240 V / 50 – 60 Hz |
| Processing | Novastar A10s Pro Receiving Card |
| Bit depth | 16 bit |
| Refreshrate | Static driving |
| Power consumption | Maximum: 630W/m² |
| Average: 210 W/m² | |
| Input voltage | 100 – 240 V / 50 – 60 Hz |
| Temperature operating | -20 to +50 °C° |
| Humidity operating | 10 to 85 % |
| Cabinet dimensions | 1000 x 1000 x 92.7 mm (W x H x D); (= 1 m²) |
| Weight | 12 kg/cabinet |
| Maintenance | Backservice |
| Protection | IP65 |
| Certification | CE, RoHS, EMC Class A, ETL, FCC, LVD |
