LUNA’s compatibility with 55/62mm frames allows effortless exhibition integration. Their clever, rugged design provides added durability and quick assembly and disassembly. Rounding out the product by using the X-GOB coating, which provides a smooth, uniform and robust surface. The A10s Pro Receiving Card also opens up advanced processing features that provide additional options there, such as smoother color gradients at all brightness levels and better grayscale calibration.

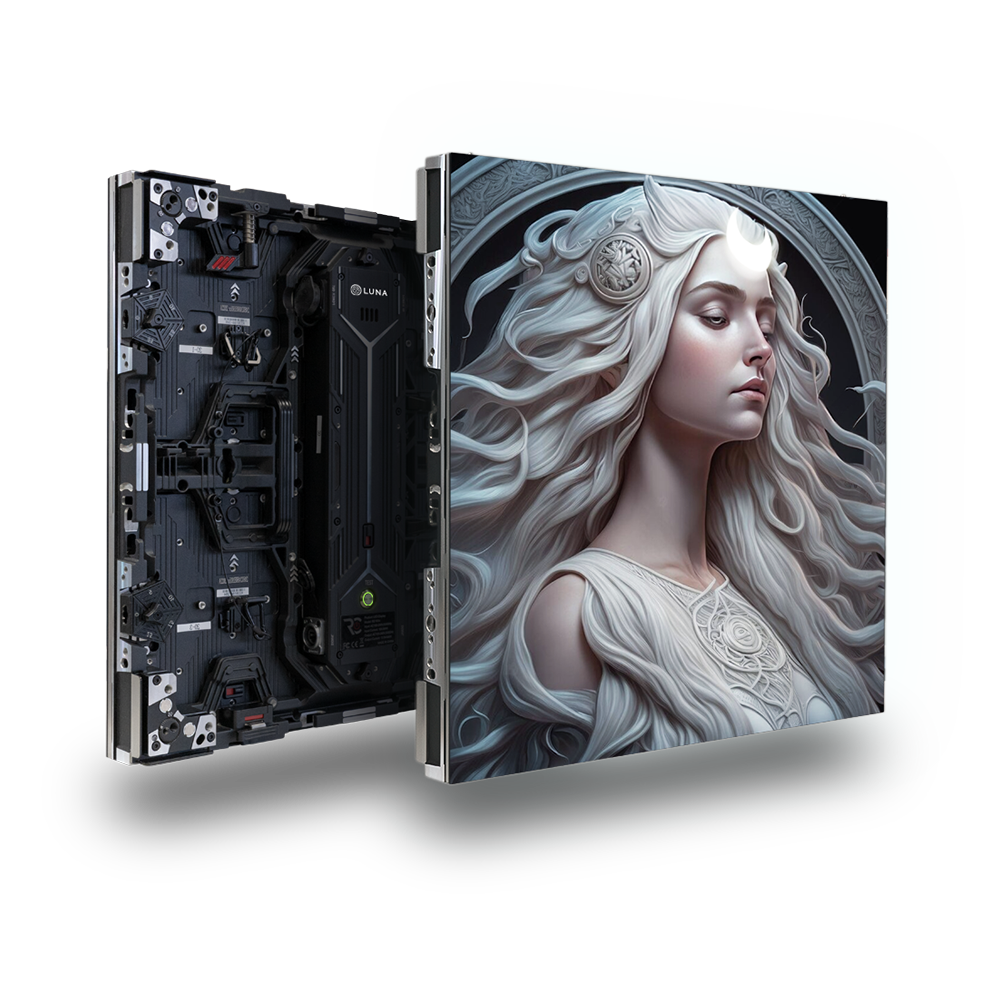

LUNA
Key features
- Compatible with common exhibition construction systems using 55/62mm frames
- Particularly robust due to X-GOB coating
- Advanced processing features due to A10s Pro Receiving Card
- Fast assembly and disassembly
| Model designation | LUNA |
| Pixel pitch | 1,93 mm |
| Brightness (max.) | up to 1000 nit |
| Application area | 256×256 px/Cabinet; 268324 px/m² |
| LED-type | SMD, CCT (Common Cathode Technology), |
|
Scan Ratio |
GOB (Glue on Board)
1/16 |
| Grayscale | 16 bit |
| Lifespan LED | 100000 hours |
| Viewing angle | 160° horizontal, 160° vertical |
| Processing | Novastar |
| Power consumption | MAX: 420W/m², AVG: 140W/m² |
| Input voltage | 100 – 240 V / 50 – 60 Hz |
| Ambient temperature | 0 to 45 C° |
| Operating humidity | 10 to 90% |
| Cabinet dimensions | 496 x 496 x 55 mm (WxHxD) |
| Weight | 9,2 kg |
| Maintenance | Front Back Service |
| Curving | concave(-): 2.5, 5.0, 7.5, 10.0 |
| Cabinet connection | Compatible to exhibition stand systems |
| Protection (Front/Back) | IP43 Front / IP 20 Back |
| Certification | CE, EMC, EMC class B, ETL |
